SKU# 99OR2542637

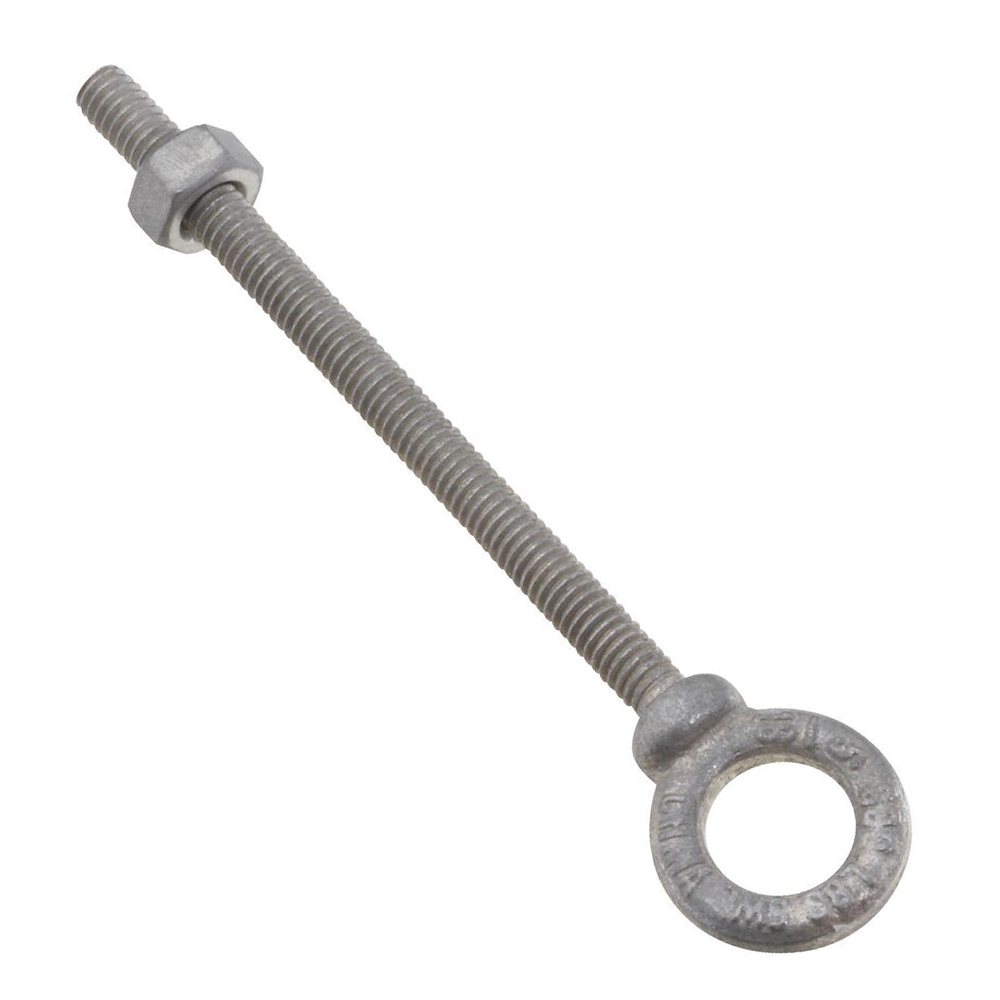

245100 FORGD EYE BLT 5/16X2.25 EYE BOLT W/NUT 5/16X2-1/4 GALV
UPC Code: 038613245105 Manufacturer Part #: 2542637 245100 FORGD EYE BLT 5/16X2.25
Store: Arlington Coal & Lumber
Product Overview
General-purpose eye bolt used where high strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for superior strength. Galvanized for corrosion resistance. With hex nut.
Key Features
- Designed with shoulder so that it can be tightened in place
- Bar code label is color coded to identify wire size
- Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts
- Great strength (SWL) is clearly defined on label
- When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration
Product Specifications
| Brand |
National Hardware |
| Eye Diameter |
5/8 in ID x 1-1/8 in OD |
| Includes |
Hex Nut |
| ITEMLABEL |
245100 FORGD EYE BLT 5/16X2.25 EYE BOLT W/NUT 5/16X2-1/4 GALV |
| Material |
Galvanized Steel |
| Model # |
N245-100 |
| Overall Length |
3-15/32 in |
| Shank Diameter |
5/16 in |
| Shank Length |
2-1/4 in |
| SKU |
99OR2542637 |
| Thread Length |
2-1/8 in |
| Thread Size |
5/16-18 |
| Working Load Limit |
800 lb |
