SKU# 99OR4104741

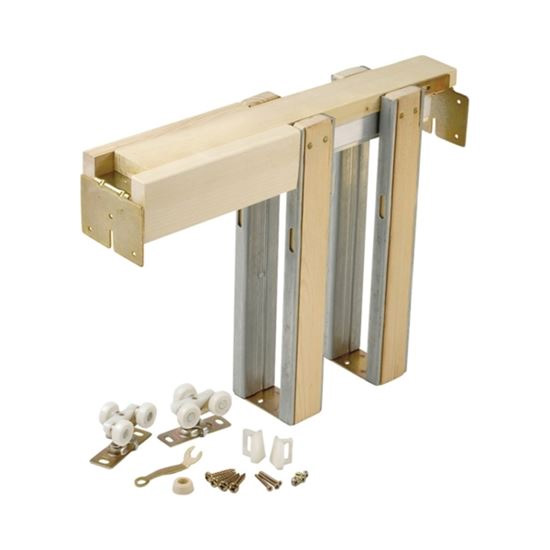

JOHNSON HARDWARE 153068PF UNIVERSAL POCKET DOOR FRAME KIT 125#
UPC Code: 086073153065 Manufacturer Part #: 0063909
Store: Arlington Coal & Lumber
Product Overview
The 1500 Series standard-duty pocket door frame is designed to carry heavy standard size doors (up to 125 lb each) in standard 2 x 4 timber or steel framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500 is a versatile frame and can be adapted for use in non-standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.
Key Features
- Machine turned and balanced nylon, factory greased wheel
- 12 to 14 ga steel components with zinc trivalent plated
- 6063T6 extruded aluminum I-Beam track with mill-aluminum finish
- Spruce, pine or fir frame header
- Split stud construction is galvanized steel wrapped spruce, pine or fir
Product Specifications
| Brand |
Johnson Hardware |
| Door Thickness |
1-3/8 in |
| Includes |
(1) Track (1) Header Length (2) Standard Hangers (2) Floor Brackets (1) Ball Bearing Hanger (1) Upright Pair with Floor Anchor (1) Door Stop (1) Adjustment Wrench (1) Door Guide Installation Hardware |
| ITEMLABEL |
JOHNSON HARDWARE 153068PF UNIVERSAL POCKET DOOR FRAME KIT 125# |
| Maximum Door Width |
36 in |
| Model # |
153068PF |
| SKU |
99OR4104741 |
| Type |
Commercial-Grade |
