SKU# F360VPLY619
SCHLAGE HANDLW/DEADBOLT SATIN NICKEL F60 V PLY 619
UPC Code: 043156171774Out of Stock at Arlington Coal & Lumber
Store: Arlington Coal & Lumber
Pickup available at
Product Overview

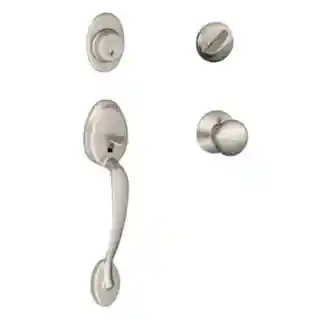

This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Key Features
- Exceeds criteria for BHMA Grade 1 certification
- Durable construction ensuring lasting use
- Installs on standard door preparations
- Schlage offers a limited lifetime mechanical and finish warranty
- Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation
Product Specifications
| Backset Size |
2-3/8 in or 2-3/4 in |
| Brand |
Schlage |
| Cross Bore |
2-1/8 in |
| Cylinder Type |
5 Pin Schlage C |
| Door Thickness |
1-3/8 in to 1-3/4 in |
| Edge Bore |
1 in, 7/8 in |
| Finish |
Satin Nickel (619) |
| Grip Center to Center |
8-3/8 in, 9-7/8 in |
| Handing |
Reversible Left or Right |
| Handle Height |
8-3/8 in |
| Handle Projection |
2-5/16 in |
| Item # |
F60PLY619 |
| ITEMLABEL |
SCHLAGE HANDLW/DEADBOLT SATIN NICKEL F60 V PLY 619 |
| Keyway Type |
C |
| Latch Faceplate |
Round Corner, Square Corner, and Drive-In |
| Material |
Zinc |
| Overall Height |
18-1/16 in |
| SKU |
F360VPLY619 |
| Trim Height |
12-5/8 in |
| Trim Width |
2-15/16 in |
