SKU# 47SDWS16212QMB

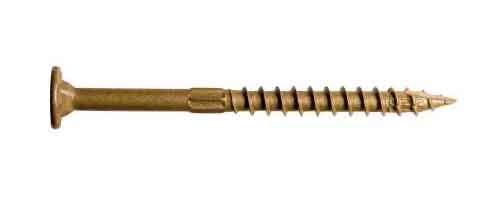

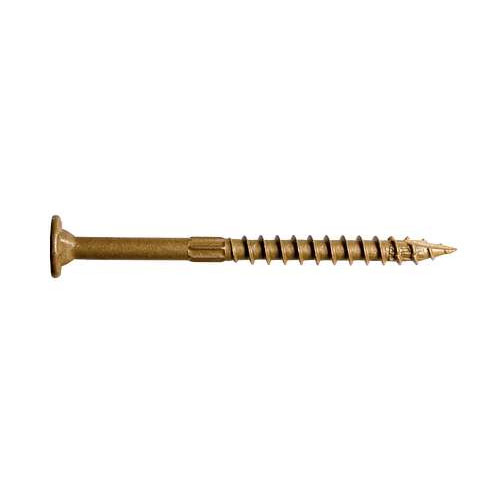

SIMPSON .160 X 2-1/2" SDWS QUIKGRDFRAMING SCREW 250 PCS.
UPC Code: 707392954125 Manufacturer Part #: SDWS16212QMBOut of Stock at Arlington Coal & Lumber
Store: Arlington Coal & Lumber
Pickup available at
Product Overview
The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160" in diameter and superior to nails in holding power and pull-out resistance.It is code listed under IAPMO UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.
The screw has a SawTooth® point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly, reducing cam-out and head stripping.
Key Features
- Large washer head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.44" head dia.)
- SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
- Quik Guard® coating provides protection in indoor and outdoor applications
Product Specifications
| Brand |
Simpson Strong-Tie |
| Coating/Material |
Quik Guard Coating |
| Description |
SDWS16212QMB |
| Drive Type |
T25 6-Lobe |
| Head Diameter |
0.440 in |
| Head Type |
Low Profile |
| ITEMLABEL |
SIMPSON .160 X 2-1/2" SDWS QUIKGRDFRAMING SCREW 250 PCS. |
| Length |
2-1/2 in |
| Model # |
SDWS16212QMB |
| Name |
.160x2-1/2IN SDWS QUIKGRD FRAMING 250CT |
| Packaging Qty |
250 |
| Point Type |
SawTooth |
| Shank Diameter |
0.160 in |
| SKU |
47SDWS16212QMB 5626506 |
| Thread Length |
1.125 in |
| Thread Type |
Serrated |
