SKU# 47EIUS18195

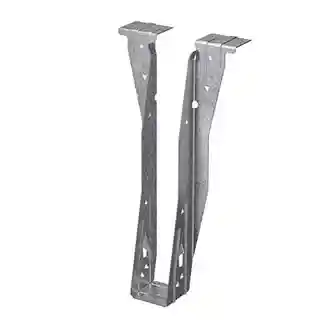

SIMPSON IUS-1.81/9.5 FACE MOUNT I-JOIST HANGER (1-7/8" X 9-1/2") (25/CTN)

Manufacturer Part #: IUS1.81/9.5 FMTJ11095
Out of Stock at Arlington Coal & Lumber
Store: Arlington Coal & Lumber
Pickup available at

Product Overview

The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Gripâ„¢ seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.

Key Features

  • Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
  • Models will normally accommodate a skew of up to 5°
  • IUS-series hangers are tested, load rated and code compliant

Product Specifications

Base

2 in
Brand

Simpson Strong-Tie
Gauge

18 GA
Height

9-1/2 in
Joist Size

1-3/4 in x 9-1/2 in
Material

G90 Galvanized
Model #

IUS1.81/9.5
Width

1-7/8 in
