SKU# 47SET3G10

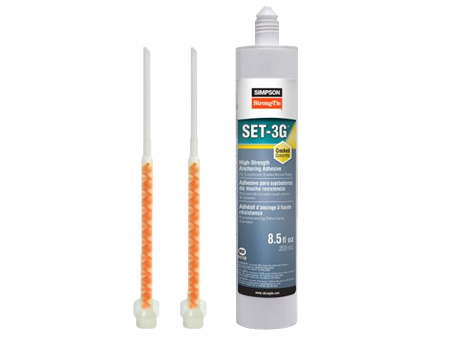

SIMPSON SET-3G™ EPOXY 8.5 OZ HIGH-STREGTH ANCHORING ADHESIVE (12/BX)
UPC Code: 707392587262 Manufacturer Part #: SET3G10 SET3G
Store: Arlington Coal & Lumber
Product Overview
SET-3G is the latest innovation in epoxy anchoring adhesives with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.
Key Features
- Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas.
- Design flexibility — improved sustained load performance at elevated temperature.
- Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C).
- Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
- Approved for installation with multiple vacuum-drill bit systems without further hole cleaning.
- Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring.
- With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas.
- Low-odor formulation.
- Manufactured in the USA using global materials.
Product Specifications
| Anchor Type |
Threaded rod or rebar |
| Base Materials |
Concrete |
| Brand |
Simpson Strong-Tie |
| Description |
12/CTN SET3G10 |
| ITEMLABEL |
SIMPSON SET-3G™ HIGH-STREGTH EPOXY ANCHORING ADHESIVE (12/BX) |
| Mix Ratio/Type |
1:1 epoxy |
| Mixed Color |
Gray |
| Model # |
SET3G10 |
| Name |
8.5 OZ HIGH STRENGTH EPOXY W/1 NOZZLE |
| Shelf Life |
24 months |
| SKU |
47SET3G10 5812365 |
| VOC Content |
2 g/L |
