SKU# 47SKR26

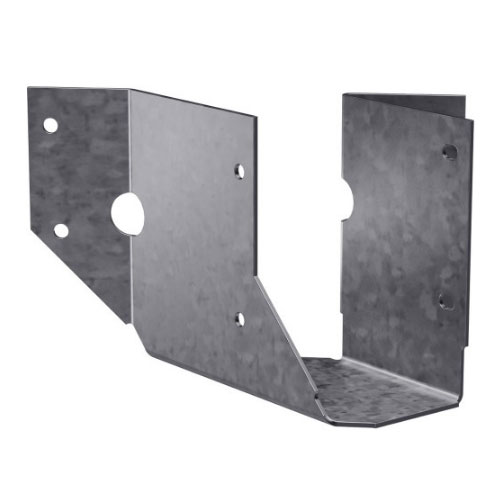

SIMPSON SUR26Z 2X6 SKEWED RIGHT 45-DEG LUMBER HANGER ZMAX COATING (10/CTN)
UPC Code: 707392172703 Manufacturer Part #: SUR26Z SKR26
Store: Arlington Coal & Lumber
Product Overview
The SUR/L are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL) respectively.
Key Features
- Features obround nail holes on the acute side allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
Product Specifications
| Angle |
45 degree |
| Base |
2 in |
| Brand |
Simpson Strong-Tie |
| Coating/Material |
ZMAX |
| Finish |
Galvanized |
| Gauge |
16 |
| Height |
5 in |
| ITEMLABEL |
SIMPSON SUR26Z 2X6 SKEWED RIGHT 45-DEG LUMBER HANGER ZMAX COATING (10/CTN) |
| Model # |
SUR26Z |
| Skew L/R |
Right |
| SKU |
47SKR26 |
| Width |
1-9/16 in |
