SKU# 954090HK17

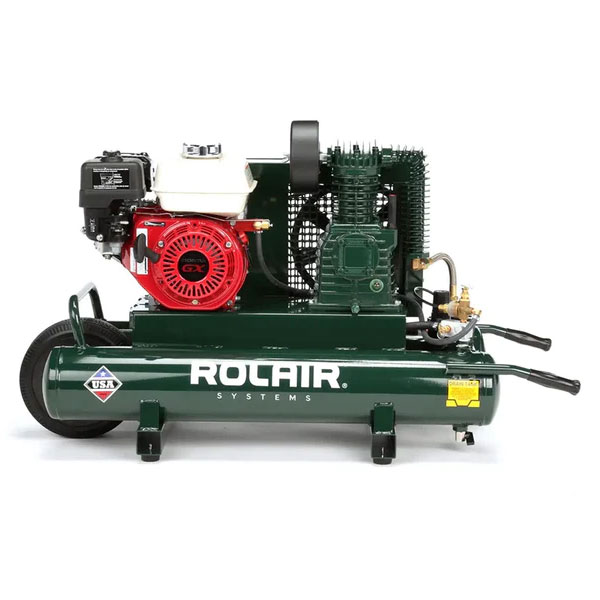

ROLAIR 5.5 HP 9-GALLON AIR COMPRESSOR HONDA GAS ENGINE (9.3 CFM @ 90 PSI)
ROLLW
Store: Arlington Coal & Lumber
Product Overview
This Rolair 5.5 HP Honda, 9.3 CFM@90PSI, 9 Gallon Twin Tank Compressor (4090HK17) features a 5 HP Honda engine, a single stage with a 9 gallon tank capacity and displaces 13.1 cubic feet with 8.7 free at 100 PSI. The 5.5 HP gas wheelbarrow has long been the top choice of framing and roofing contractors. In this class, the 4090HK17 stands out because of its high CFM output, portability and rugged build. Delivering 9.3 CFM at 90 PSI this unit incorporates the popular 5.5 HP Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption. Battle tested contractor tough? There's only one way to find out. Get it dirty, run it hot and don't let up - just like a contractor. That's how they're used, so that's how they're tested. Engines, pumps, motors, switches - every component of every Rolair compressor is battle-tested both in the field and at our Wisconsin factory. You have our guarantee that your Rolair compressor is ready to roll on day one, no excuses.
Key Features
- 9.3 CFM pump capable of 3-5 framing guns or 4-7 roofing guns
- Two-cylinder, high-efficiency single-stage pump includes cast iron cylinders, stainless steel reed valves, oil sight glass, oil drain extension, finned after cooler and automotive style bearing inserts
- Uses a 5.5 HP Honda engine equipped with automatic engine idle for fuel economy and long service life and atmospheric unloading system to prevent oil consumption
- Compressor built with Schmidt belt-tightening device, which makes for easy belt tightening, fully pneumatic tire with sealant, for protection against flats, and heavy-duty, two-piece 16 gauge bolted belt guard
Product Specifications
Air Delivery |
@ 40PSI 10.7 scfm @ 90PSI 9.3 scfm |
Base Construction |
Steel |
Brand |
Rol-Air |
Color / Finish |
Green |
Compressor Design |
Wheelbarrow/Wheeled |
Compressor Uses |
Pneumatic tools including nail & staple guns |
CSA Certified |
Yes |
Fuel Type |
Gasoline |
Full Roll Cage |
No |
Handle |
Yes |
Handle Type |
Ends |
Height |
28 in |
Horsepower |
5.5 hp |
Housing Material |
Steel |
Items Per Pallet Layer |
1 |
Layers Per Pallet |
1 |
Length |
46 in |
Maximum Pressure Rating |
135 psi |
Model # |
4090HK17 |
Nesting Increment |
33 |
Nozzle Fitting Size |
1/2 in |
Operating Position |
Horizontal |
Regulator |
Yes |
Stacking Factor |
1 |
Start Type |
Manual |
Switch Type |
Pilot |
Tank Capacity |
9 gal |
Tank Configuration |
Twin Side by Side |
Tank Material |
Steel |
Tank Pressure Gauge |
Yes |
Type of Air Compressor Tank |
Portable |
UL Listed |
Yes |
Weight |
174 lbs |
Wheel Diameter |
10 in |
Wheel Width |
3.5 in |
Wheeled |
Yes |
Width |
19 in |
