SKU# 47SDWS1050
SIMPSON 10" SDWS MULTI-PURP TAN STRUCTURAL SCRW 50 PCS (SDWS-221000DB-R50)
UPC Code: 746056005339 Manufacturer Part #: SDWS221000DB-R50 SD1050
Store: Arlington Coal & Lumber
Pickup available at
Product Overview
Designed to provide an easy-to-install, high-strength alternative to through-bolting and traditional lag screws. The Strong-Drive SDWS Timber Screw (Exterior Grade) is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.
Key Features
- SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- Bold thread design provides superior holding power
- Underhead nibs offer greater control when seating the head

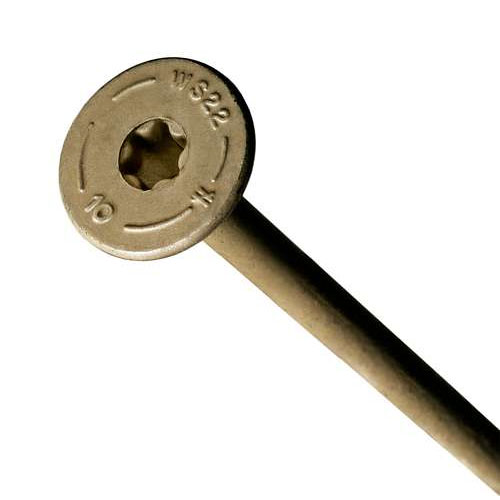

- Large low-profile washer head provides maximum bearing area (0.75" head dia.)
- Size identification on all SDWS screw heads
- 6-lobe T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT40T-134-RC)
- Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated wood applications, as described in the evaluation report
Product Specifications
| Brand |
Simpson Strong-Tie |
| Coating/Material |
Double-Barrier Coating |
| Drive Type |
T40 6-Lobe |
| Head Diameter |
0.750 in |
| Head Type |
Washer |
| ITEMLABEL |
SIMPSON 10" SDWS MULTI-PURP TAN STRUCTURAL SCRW 50 PCS (SDWS-221000DB-R50) |
| Length |
10 in |
| Model # |
SDWS221000DB-R50 |
| Packaging Qty |
50 |
| Point Type |
SawTooth |
| Shank Diameter |
0.220 |
| SKU |
47SDWS1050 |
| Thread Length |
2-3/4 in |
