SKU# 47ABW44

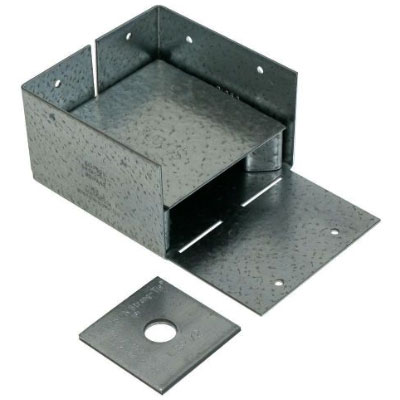

SIMPSON ABW-44Z 4X4 ADJ POST BASE Z-MAX COATING (10/CTN)
UPC Code: 707392490203 Manufacturer Part #: ABW44Z ABW44
Store: Arlington Coal & Lumber
Product Overview
The ABW is designed to attach wooden posts to existing concrete in medium-capacity applications. The built-in 1" standoff of this adjustable post base helps to prevent rot at the end of the post. The ABW has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.
Key Features
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1" stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
Product Specifications
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
16 ga |
| Height |
2-1/4 in |
| ITEMLABEL |
SIMPSON ABW-44Z 4X4 ADJ POST BASE Z-MAX COATING (10/CTN) |
| Joist Size |
4 x 4 |
| Length |
3-9/16 in |
| Material |
ZMAX |
| Model # |
ABW44Z |
| Name |
Z-MAX ADJ POST BASE 10/CTN |
| SKU |
47ABW44 5600640 |
| Width |
3-9/16 in |
