SKU# 47ABW66

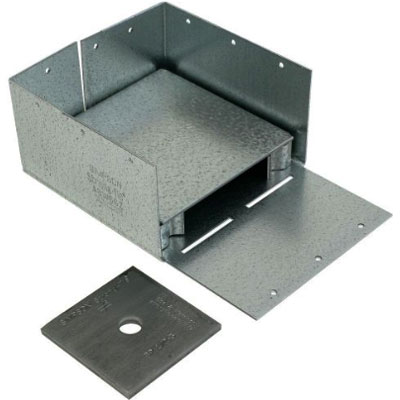

SIMPSON ABW-66Z 6X6 ADJ POST BASE Z-MAX COATING (6/CTN)
UPC Code: 707392549604 Manufacturer Part #: ABW66Z ABW66
Store: Arlington Coal & Lumber
Product Overview
The ABW is designed to attach wooden posts to existing concrete in medium-capacity applications. The built-in 1" standoff of this adjustable post base helps to prevent rot at the end of the post. The ABW has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.
Key Features
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1" stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
Product Specifications
| Brand |
Simpson Strong-Tie |
| Description | |
| Height |
3 in |
| ITEMLABEL |
SIMPSON ABW-66Z 6X6 ADJ POST BASE Z-MAX COATING (6/CTN) |
| Joist Size |
6 x 6 |
| Length |
5-9/16 in |
| Material |
ZMAX |
| Model # |
ABW66Z |
| Name |
Z-MAX ADJ POST BASE 10/CTN |
| SKU |
47ABW66 5600642 |
| Width |
5-1/2 in |
