SKU# 47BC6

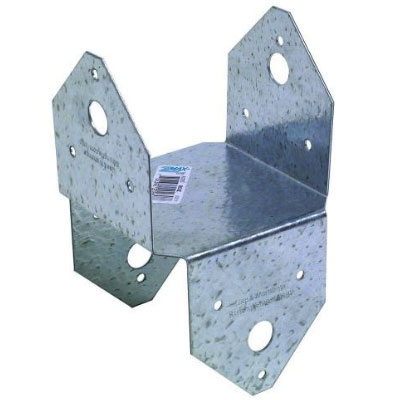

SIMPSON BC6Z POST CAP/BASE CONNECTOR ZMAX COATING (5-1/2" TO 5-1/2") (10/BX)
UPC Code: 707392817505 Manufacturer Part #: BC6 BC6Z
Store: Arlington Coal & Lumber
Product Overview
The BC post cap is designed to connect a beam to a post. The 18-gauge material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Key Features
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Light-gauge material designed for light-duty applications
Product Specifications
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
18 GA |
| Height |
3-3/8 in |
| ITEMLABEL |
SIMPSON BC6Z POST CAP/BASE CONNECTOR ZMAX COATING (5-1/2" TO 5-1/2") SIMPSON BC6Z POST CAP/BASE CONNECTOR ZMAX COATING (5-1/2" TO 5-1/2") (10/BX) |
| Length |
4-3/8 in |
| Material |
ZMAX |
| Model # |
BC46Z |
| Name |
Z-MAX POST CAP/BASE 10/CTN |
| Post Size |
6 x 6 |
| SKU |
47BC6 5600581 |
| Width |
5-1/2 in |
