SKU# 47BCS224

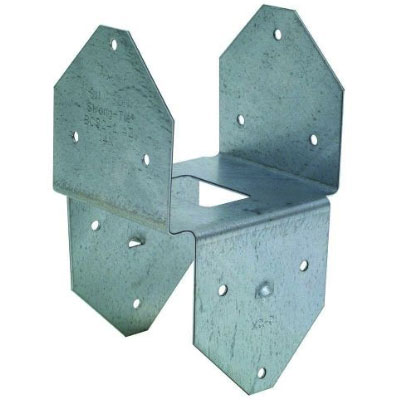

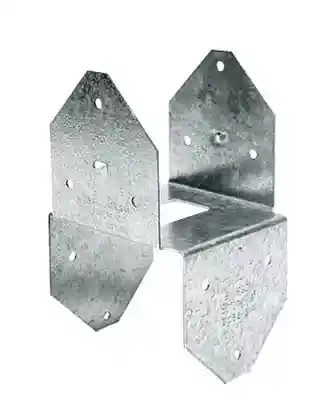

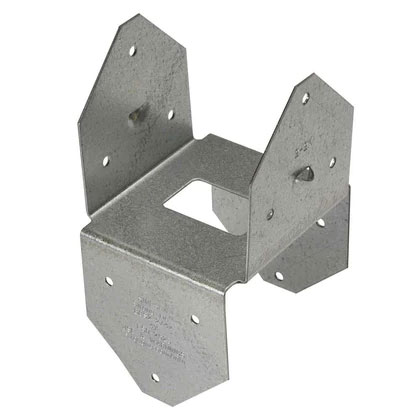

SIMPSON BCS2-2/4 DOUBLE SHEAR POST CAP ZMAX COATING (DBL-2X'S TO 4X POST)

BCS224
45 Available

Product Overview

The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2x members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.

Key Features

  • Opposing flanges provide increased lateral resistance
  • Double-shear nailing for optimal strength
  • Sized specifically for multi-2x widths

Product Specifications

Brand

Simpson Strong-Tie

Gauge

18 GA

Height

2-15/16 in

Length

2-7/8 in

Material

G90 Galvanized

Model #

BCS2-2/4

Post Size

Double 2x beam, 4x post

Width (1)

3-1/8 in

Width (2)

3-9/16 in
