SKU# 47EHGUS412

SIMPSON HGUS-412 12-GA FACE MOUNT STRUCTURAL HANGER (3-5/8" X 10-7/16") (12/CTN)

UPC Code: 044315806803 Manufacturer Part #: HGUS412 LVL112
39 Available
Store: Arlington Coal & Lumber

Product Overview

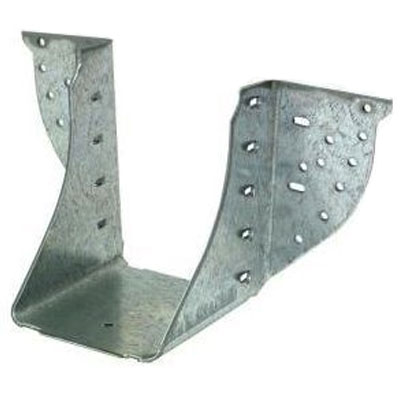

The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.

Key Features

  • Can be installed after the beam is secured in place
  • HGUS-series hangers are tested, load rated and code compliant

Product Specifications

Base

4 in
Brand

Simpson Strong-Tie
Description

Gauge

12 GA
Height

10-7/16 in
ITEMLABEL

SIMPSON HGUS-412 12-GA FACE MOUNT STRUCTURAL HANGER (3-5/8" X 10-7/16") (12/CTN)
Joist Size

4 x 12
Material

G90 Galvanized
Model #

HGUS412
Name

FACE MOUNT LVL HANGER 12/CTN
SKU

47EHGUS412

5720001
Width

3-5/8 in
