SKU# 47EHGUS414

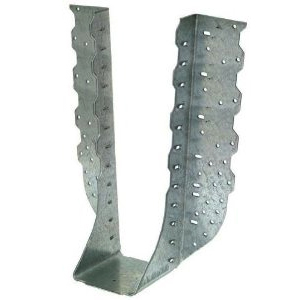

SIMPSON HGUS-414 12-GA FACE MOUNT STRUCTURAL HANGER (3-5/8" X 12-7/16") (12/CTN)
UPC Code: 044315592904 Manufacturer Part #: HGUS414 LVL142
Store: Arlington Coal & Lumber
Product Overview
The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.
Key Features
- Can be installed after the beam is secured in place
- HGUS-series hangers are tested, load rated and code compliant
Product Specifications
| Base |
4 in |
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
12 GA |
| Height |
12-7/16 in |
| ITEMLABEL |
SIMPSON HGUS-414 12-GA FACE MOUNT STRUCTURAL HANGER (3-5/8" X 12-7/16") (12/CTN) |
| Joist Size |
4 x 14 |
| Material |
G90 Galvanized |
| Model # |
HGUS414 |
| Name |
FACE MOUNT LVL HANGER 12/CTN FACE MOUNT LVL HANGER SKEW R45 |
| SKU |
47EHGUS414 5721001 5721012 |
| Width |
3-5/8 in |
