Main 1 - SIMPSON HGUS-5.50/14 (12-GA) 3-WIDE FACE MOUNT STRUCTURAL HANGER (5-1/2" X 12-1/2") (12/CTN) - Arlington Coal & Lumber
Main 2 - SIMPSON HGUS-5.50/14 (12-GA) 3-WIDE FACE MOUNT STRUCTURAL HANGER (5-1/2" X 12-1/2") (12/CTN) - Arlington Coal & Lumber
Thumbnail 1 - SIMPSON HGUS-5.50/14 (12-GA) 3-WIDE FACE MOUNT STRUCTURAL HANGER (5-1/2" X 12-1/2") (12/CTN) - Arlington Coal & Lumber Thumbnail 2 - SIMPSON HGUS-5.50/14 (12-GA) 3-WIDE FACE MOUNT STRUCTURAL HANGER (5-1/2" X 12-1/2") (12/CTN) - Arlington Coal & Lumber
SKU# 47EHGUS55014

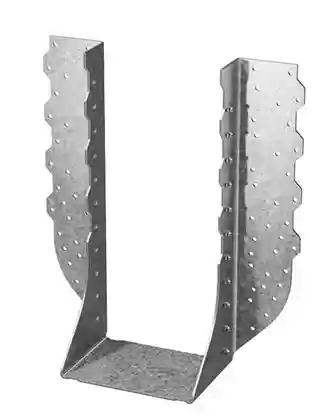

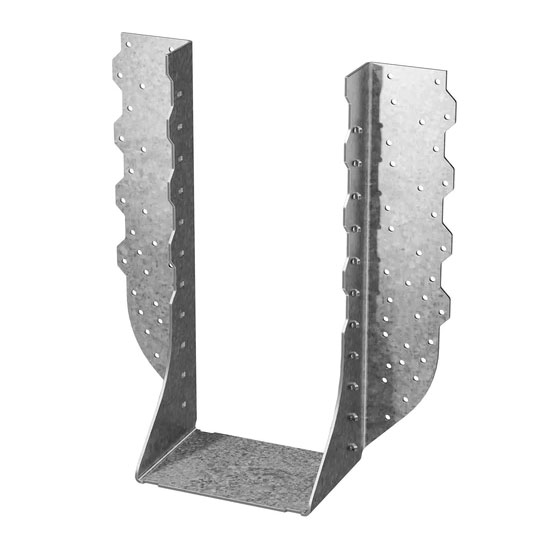

SIMPSON HGUS-5.50/14 (12-GA) 3-WIDE FACE MOUNT STRUCTURAL HANGER (5-1/2" X 12-1/2") (12/CTN)

Manufacturer Part #: HGUS5.50/14 LVL143
17 Available
Store: Arlington Coal & Lumber

Product Overview

The HGUS is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.

Key Features

  • Can be installed after the beam is secured in place
  • HGUS-series hangers are tested, load rated and code compliant

Product Specifications

Base

4 in
Brand

Simpson Strong-Tie
Gauge

12 GA
Height

12-1/2 in
Material

G90 Galvanized
Model #

HGUS5.50/14
Width

5-1/2 in
