SKU# 47EHUC282

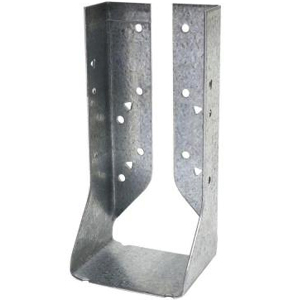

SIMPSON HUC28-2Z DOUBLE 2X8 CONCEALED FLANGE HANGER (25/CTN)
UPC Code: 707392254706 Manufacturer Part #: HUC28-2 HUC282
Store: Arlington Coal & Lumber
Product Overview
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Key Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Product Specifications
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
14 GA |
| Height |
7 in |
| ITEMLABEL |
SIMPSON HUC28-2Z DOUBLE 2X8 CONCEALED FLANGE HANGER (25/CTN) |
| Joist Size |
Double 2 x 10 |
| Material |
ZMAX |
| Model # |
HUC28-2Z |
| Name |
Z-MAX HANGER CONCEALED FLANGE 2X8-2 |
| SKU |
47EHUC282 5604239 |
| Width |
3-1/8 in |
