SKU# 47EITS23714

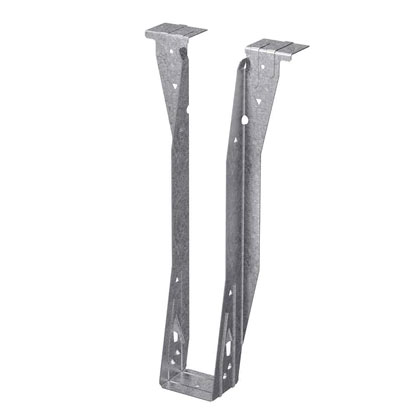

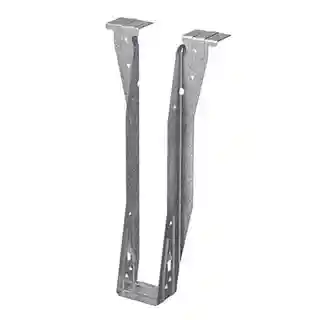

SIMPSON ITS-2.37/14 TOP FLANGE I-JOIST HANGER (2-7/16" X 13-15/16") (25/CTN)

ITS23714
39 Available

Product Overview

The innovative ITS is designed to support 90° connections of I-joists to headers. This top-flange hanger features the Strong-Grip™ seat and Funnel Flange™ design allowing standard joist installation without the use of joist nails, resulting in the lowest installed cost.

Key Features

  • Cost-effective hanger that installs quickly with a small number of nails
  • Features additional triangle holes for additional uplift
  • Features optional fastening with PAT for steel applications/header

Product Specifications

Base

2 in
Brand

Simpson Strong-Tie
Gauge

18 GA
Height

13-15/16 in
Joist Size

2-5/16 in x 14 in
Material

G90 Galvanized
Model #

ITS2.37/14
Width

2-7/16 in
