SKU# 47LSCZ
SIMPSON LSCZ STRINGER HANGER Z-MAX COATING (25/CTN)
UPC Code: 707392273103 Manufacturer Part #: LSCZ LSCZ
Store: Arlington Coal & Lumber
Product Overview

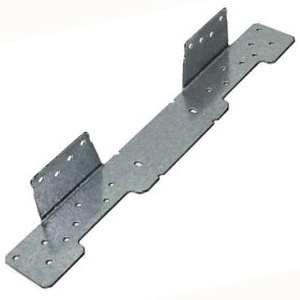

The LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim board while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers.
Key Features
- Replaces additional framing and toe-nailing.
- May be installed flush with the top of the carrying member (typically suitable for 2x10 or 2x12 header / rim board) or lower on the face (typically suitable for a 2x12 header / rim board).
- Interchangeable for left or right applications.
- LSCZ features a ZMAX® coating for additional corrosion protection. Suitable for interior and some exterior applications.
Product Specifications
Brand |
Simpson Strong-Tie |
Finish |
ZMAX |
Gauge |
18 GA |
Height |
1-1/2 in |
Length |
11-1/16 in |
Model # |
LSCZ |
