SKU# 47LSSJ210RZ
SIMPSON LSSJ-210RZ SLOPE/SKEW RIGHT 2X10 RAFTER HANGER (25/CTN)
UPC Code: 707392364412Product Overview

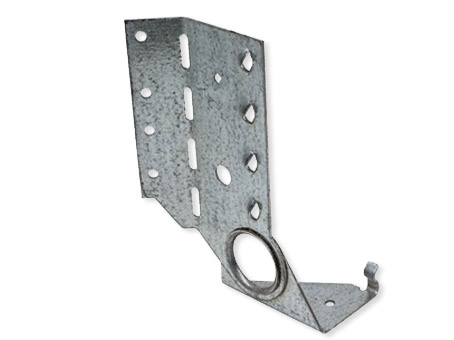

The Simpson Strong-Tie LSSJ210RZ Field-Adjustable Jack Hanger is the ideal hanger for connecting a 2 x 10 jack rafters to hip/valley members when the rafter skews to the right. Its simple design makes installation intuitive and quick, resulting in lower labor costs. Featuring a versatile, hinged seat, the LSSJ210RZ is easily field-adjustable to typical rafter slopes, with a max slope of 12:12. It ships pre-bent with a 45° skew, making it ready to place for the most typical rafter conditions, and can be field-adjusted for lesser skews. Additionally, it can be installed as a retrofit, enabling installers to first tack all the rafters into place without pausing and to then install the hanger later.
Key Features
- All nail holes are easily accessible on one side with a hammer or connector nail gun
- Straightforward design makes installation quick and intuitive, saving you time and labor costs
- Flange design allows for easy skew adjustment, from 0° to 45°
- Accommodates roof pitches from 0:12 to 12:12
- Swivel seat adjusts easily and provides more support to joist, allowing for higher load than fasteners alone
Product Specifications
| Brand |
Simpson Strong-Tie |
| Finish |
ZMAX |
| Gauge |
18 GA |
| Height |
8 in |
| Joist Size |
2 x 10 |
| Length |
1-9/16 in |
| Material |
Carbon Steel |
| Model # |
LSSJ210RZ |
