SKU# 47LUC26Z

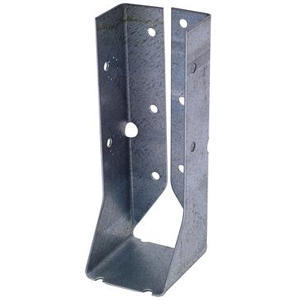

SIMPSON LUC26Z 2X6-2X8 FM CONCEALED FLANGE HANGER Z-MAX (25/CTN)
UPC Code: 707392607403 Manufacturer Part #: LUC26Z LUC26Z
Store: Arlington Coal & Lumber
Product Overview
The LUC is designed to provide support underneath the joist, rafter or beam to provide a strong connection. This face-mount hanger has concealed header flanges that make for cleaner visible lines in exposed conditions. The LUC is value engineered for strength and economy and provides for easier and faster installation.
Key Features
- LUC-series hangers are tested, load rated and code compliant
- The LUC series installs using several fastener selections with tested allowable loads
Product Specifications
| Base |
1-3/4 in |
| Brand |
Simpson Strong-Tie |
| Description | |
| Finish |
ZMAX |
| Gauge |
18 GA |
| Height |
7-3/4 in |
| ITEMLABEL |
SIMPSON LUC26Z 2X6-2X8 FM CONCEALED FLANGE HANGER Z-MAX (25/CTN) |
| Joist Size |
2 x 6 |
| Model # |
LUC26Z |
| Name |
Z-MAX CONCEALED FLANGE JOIST HGR 25/CTN |
| SKU |
47LUC26Z 5605610 |
| Width |
1-9/16 in |
