SKU# 47890000

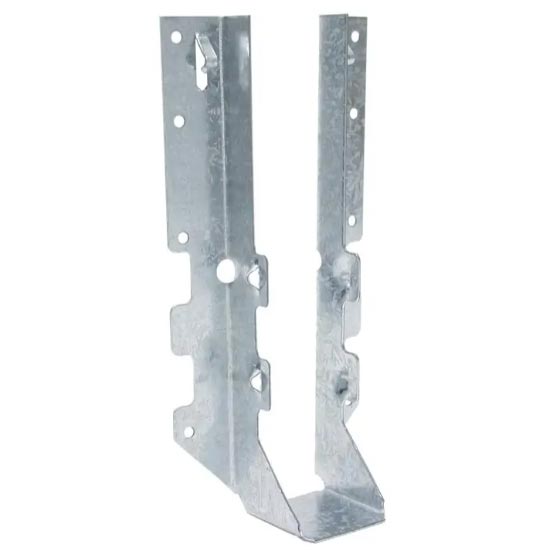

SIMPSON LUS210-2Z 2 X 10/ 2 X 12 DOUBLE HD JOIST HANGER Z-MAX COATING (25/CTN)

UPC Code: 044315250804 Manufacturer Part #: LUS210-2Z LUS2102
473 Available
Store: Arlington Coal & Lumber

Product Overview

The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

Key Features

  • Cannot be modified
  • Works for a wide range of applications
  • Features speed prongs used to temporarily position and secure the connector for easier and faster installation
  • LUS-series hangers are tested, load rated and code compliant

Product Specifications

Base

2 in
Brand

Simpson Strong-Tie
Description

Gauge

18 GA
Height

9 in
ITEMLABEL

SIMPSON LUS210-2Z 2 X 10/ 2 X 12 DOUBLE HD JOIST HANGER Z-MAX COATING (25/CTN)
Joist Size

2 x 10
Material

ZMAX
Model #

LUS210-2Z
Name

Z-MAX LIGHT DBL SHEAR JOIST HANGER 25CTN
SKU

47890000

5605410
Width

3-1/8 in
