SKU# 4726T

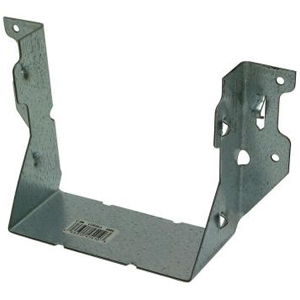

SIMPSON LUS26-3Z 2 X 6 TRIPLE JOIST HANGER Z-MAX COATING
UPC Code: 044315454103 LUS263ZProduct Overview
The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Key Features
- Cannot be modified
- Works for a wide range of applications
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Product Specifications
| Base |
2 in |
| Brand |
Simpson Strong-Tie |
| Gauge |
18 GA |
| Height |
4-1/8 in |
| Joist Size |
2 x 6 |
| Material |
ZMAX |
| Model # |
LUS26-3Z |
| Width |
4-5/8 in |
