SKU# 47880000

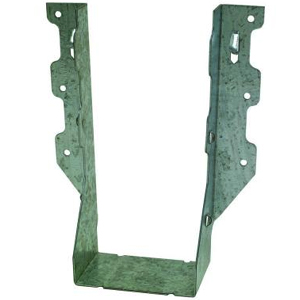

SIMPSON LUS28-2Z 2 X 8 DOUBLE HD JOIST HANGER Z-MAX COATING (25/CTN)
UPC Code: 044315572302 Manufacturer Part #: LUS28-2Z LUS282
Store: Arlington Coal & Lumber
Product Overview
The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Key Features
- Cannot be modified
- Works for a wide range of applications
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Product Specifications
| Base |
2 in |
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
18 GA |
| Height |
7 in |
| ITEMLABEL |
SIMPSON LUS28-2Z 2 X 8 DOUBLE HD JOIST HANGER Z-MAX COATING (25/CTN) |
| Joist Size |
2 x 8 |
| Material |
ZMAX |
| Model # |
LUS28-2Z |
| Name |
Z-MAX LIGHT DBL SHEAR JOIST HANGER 25CTN |
| SKU |
47880000 5605405 |
| Width |
3-1/8 in |
