SKU# 47EMIT3514

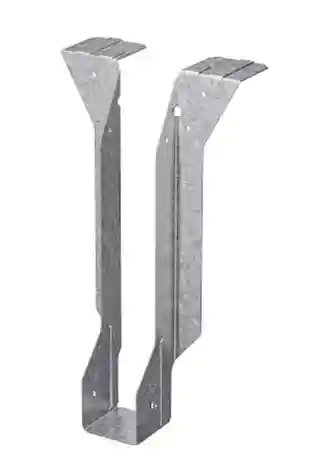

SIMPSON MIT-3514 DOUBLE 14" T/M I-JOIST HANGER TJ11014 /TJ56014 SINGLE (3-9/16" X 14")

Manufacturer Part #: MIT3514 TMTJ11014D
Out of Stock at All Branches
Store: Arlington Coal & Lumber

Product Overview

The MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange™ design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.

Key Features

  • Features additional triangle holes for additional uplift
  • Features optional fastening with PAT for steel applications/header
  • Cost-effective solution for standard 90º connections in comparison to welded hangers

Product Specifications

Base

2-1/2 in
Brand

Simpson Strong-Tie
Finish

G90 Galvanized
Gauge

16 ga
Height

14 in
Joist Size

2-5/16 in x 14 in
Model #

MIT3514
TF

2-5/16 in
Width

2-3/8 in
