SKU# 85VSM04
VELUX VS-M04-2004 VENT D/M LAMINATED LOW.E-3 GLAZING (R.O. 30-1/16" X 37-7/8") ** UNIT ONLY; MUST ADD EDL
VSM04
Store: Arlington Coal & Lumber
Product Overview

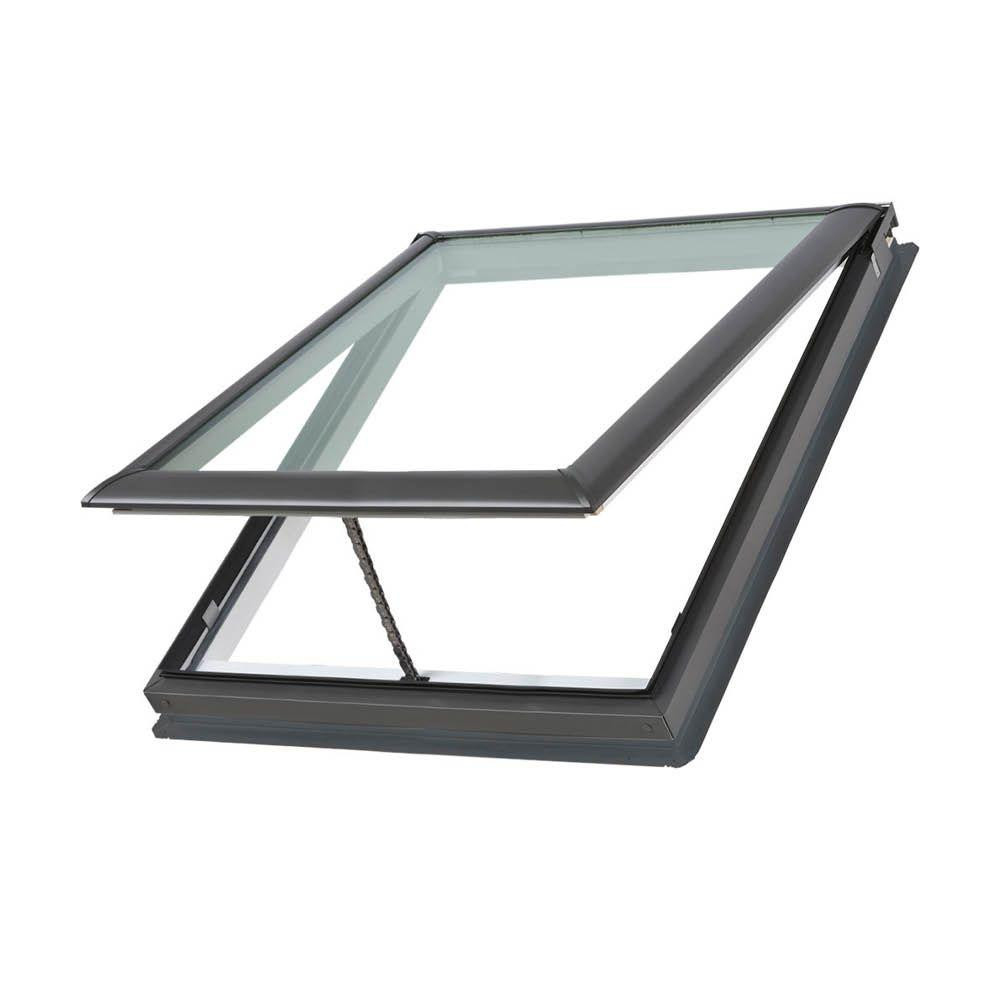

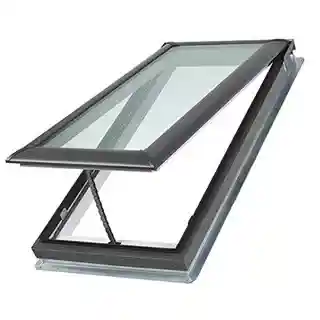

The VELUX VS M04 manually operated skylight is the most economical choice for a venting (opening) skylight. It's great for increasing visual areas in your home or office that are lacking light. In addition, it's ability to be opened can help circulate air in your home.
Key Features
- A control rod can be used when skylights are out-of-reach. An optional crank handle is available for in-reach applications.
- Factory pre-finished white frames and sashes provide for a high-quality finish that eliminates the need for secondary high-cost trips by a painter.
- A sunscreen accessory tray for standard site-built curbs allows for installation of VELUX Pick&Click!
Product Specifications
| Brand |
Velux |
| Cladding Type |
Aluminum |
| Daylight Area |
5.469 sq ft |
| Depth |
5 in |
| Frame Material |
Wood |
| Glazing Type |
Laminated Low E |
| Height |
38.38 in |
| Material |
Glass |
| Model # |
VS-M04-2004 |
| Operation |
Lever |
| Operation Type |
Manual |
| Roof Pitch Range |
14 - 85 deg |
| Rough Opening Height |
37.88 in |
| Rough Opening Width |
30.06 in |
| U-Factor |
0.43 |
| UV Protection |
95.2 % |
| Width |
30.56 in |
